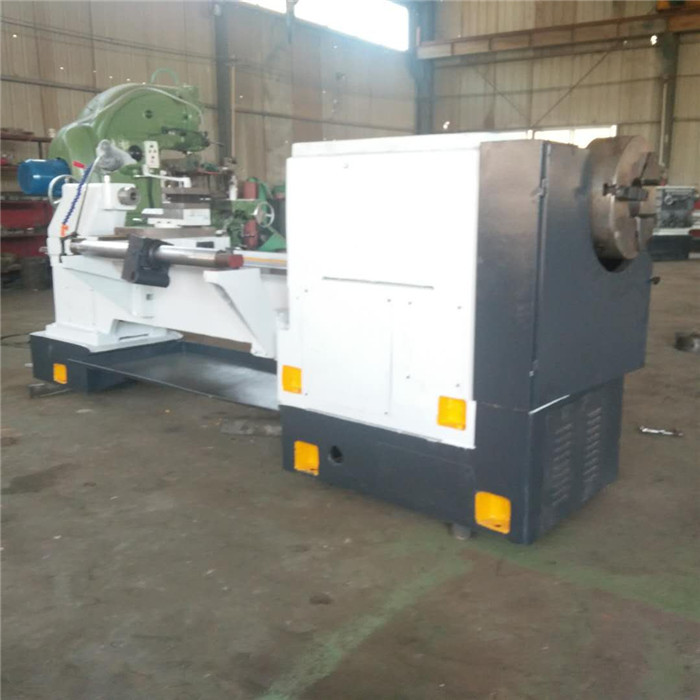

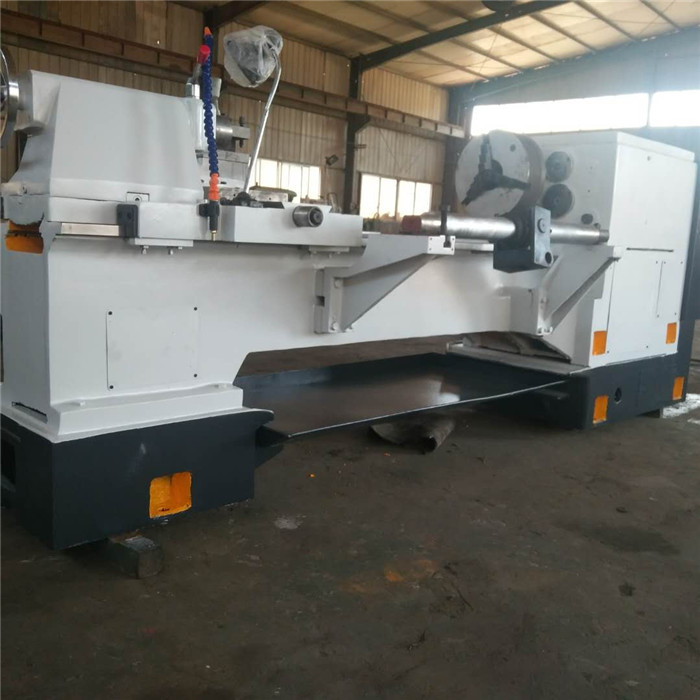

Q1313 Pipe Threading Screw cutting Lathe , Heavy Duty Big Bore Metal Lathe
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:
Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
1). Big spindle bore and double chuck allows clamp and process big diameter pipes;
2). Integral machine bed adopts high strength iron to relize high rigidity and precision;
3). Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
4). Equiped with taper guide bar device this enables the machine to process taper threads.
| Specifications | UNIT | Q1324 | Q1327 | Q1332 | Q1338 | Q1343 | Q1350 |
| Capacity | Swing over bed | mm | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| | Swing over cross slide | mm | 480 | 610 | 610 | 610 | 610 | 610 |
| | Pipe threading range | mm | Ø60-230 | Ø130-270 | Ø190-320 | Ø190-380 | Ø270-430 | Ø350-510 |
| | Width of bed way | mm | 705 | 755 | 755 | 755 | 755 | 755 |
| Spindle | Spindle bore | mm | Ø240 | 280 | 330 | 390 | 440 | 520 |
| | Spindle speed range | rpm | 20-460 | 16-380 | 7.5-280 | 6-205 | 4.9-180 | 4.9-180 |
| | Chuck size | mm | Ø630 | Ø800 | Ø780 | Ø850 | Ø1000 | Ø1000 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
